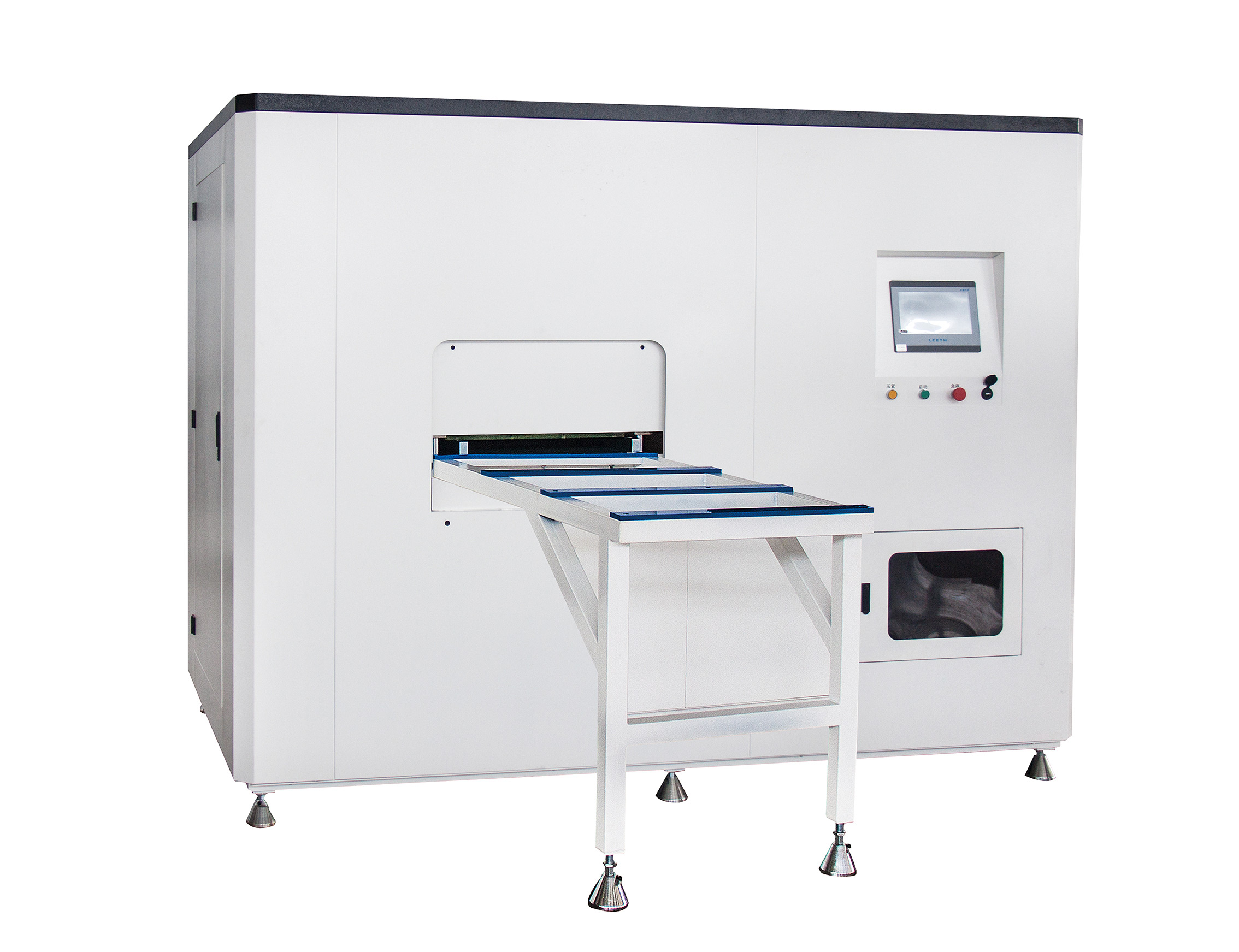

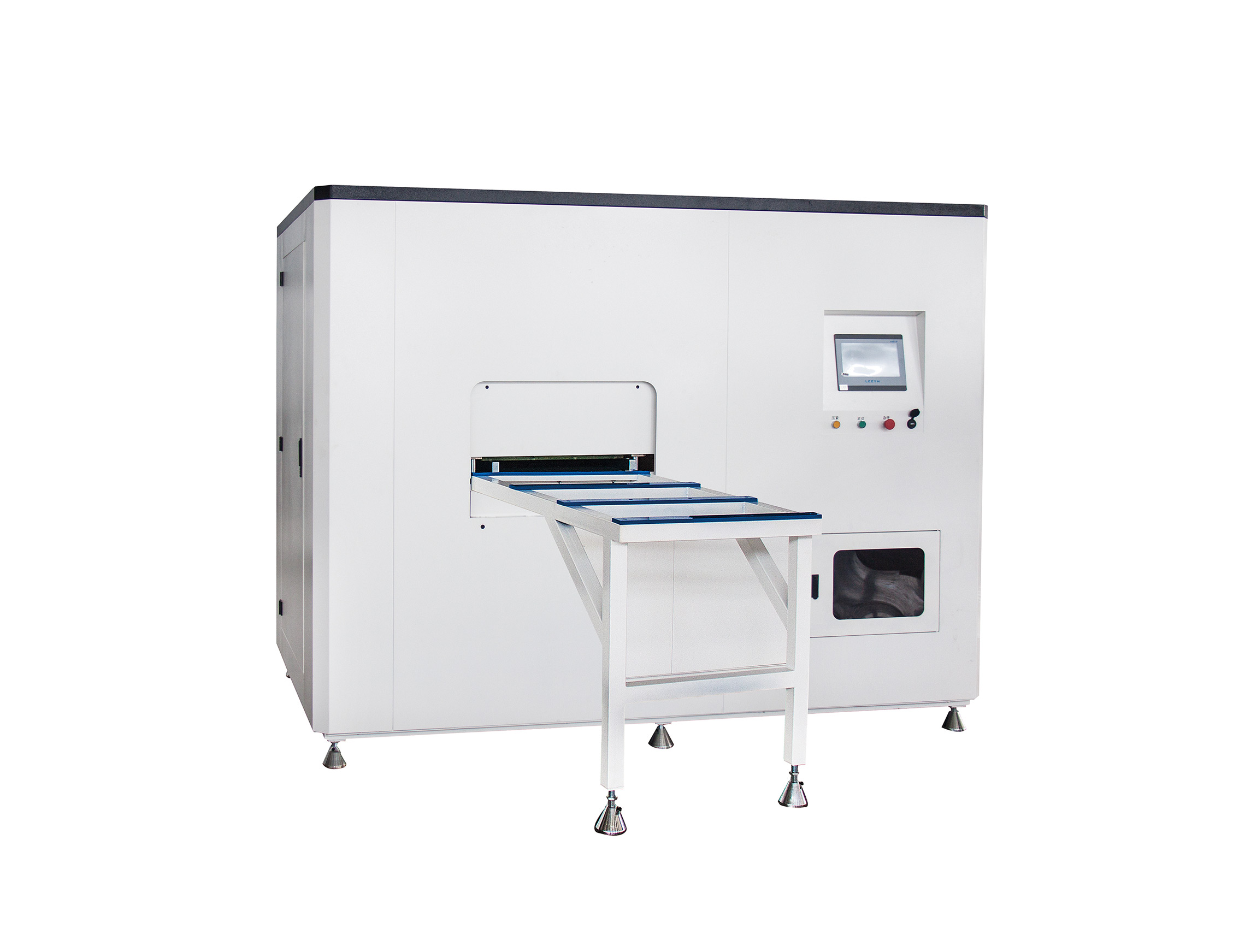

CNC End Milling Machine for Aluminum Profiles (Dual Spindle)SKDX-CNC-4+2

CNC End Milling Machine for Aluminum Profiles (Dual Spindle)SKDX-CNC-4+2

• Function:
  The aluminum profile 4+2 dual-spindle CNC end milling machine is one of the automated production equipment for aluminum doors and windows, suitable for high-efficiency processing of end face forming of aluminum profiles, including ordinary mullion materials, frame and sash flush materials, and reinforced mullion materials.
  Features: Heavy-duty body design ensures operational stability and reliability. It adopts a CNC system with three-axis full servo, featuring good stability, fast speed, and high precision. It offers advantages such as environmentally friendly and efficient processing, a wide processing range, easy operation, simple programming, and high production efficiency. The Z-axis features a reverse function and employs dual spindle motors, with the upper and lower motors reciprocating to mill materials, achieving efficient processing. It automatically performs horizontal milling and vertical sawing, boasting superior rigidity and smoother milling surfaces. The user-friendly interface can store multiple processing data, allowing direct access during use, making operation simple. The servo motor drives the ball screw and square rail slider to move. After programming according to the profile, the tool position is automatically adjusted. The milling position is precise, and the feed rate can be automatically identified based on the milling depth. Main technical parameters:
  Power supply (three-phase four-wire) 380V, 50HZ
  Working air pressure: 0.5-0.8 MPa
  Main spindle electric power: 3KW*2
  Tool feed stroke: X-axis 950mm
  Tool adjustment travel: Z-axis 180mm, Y-axis 110mm
  Effective width of workbench: 480mm
  Maximum milling height: 200mm
  Milling cutter specification: 350*6.0*30*60T*2
  Overall dimensions: 2490*1900*1490
